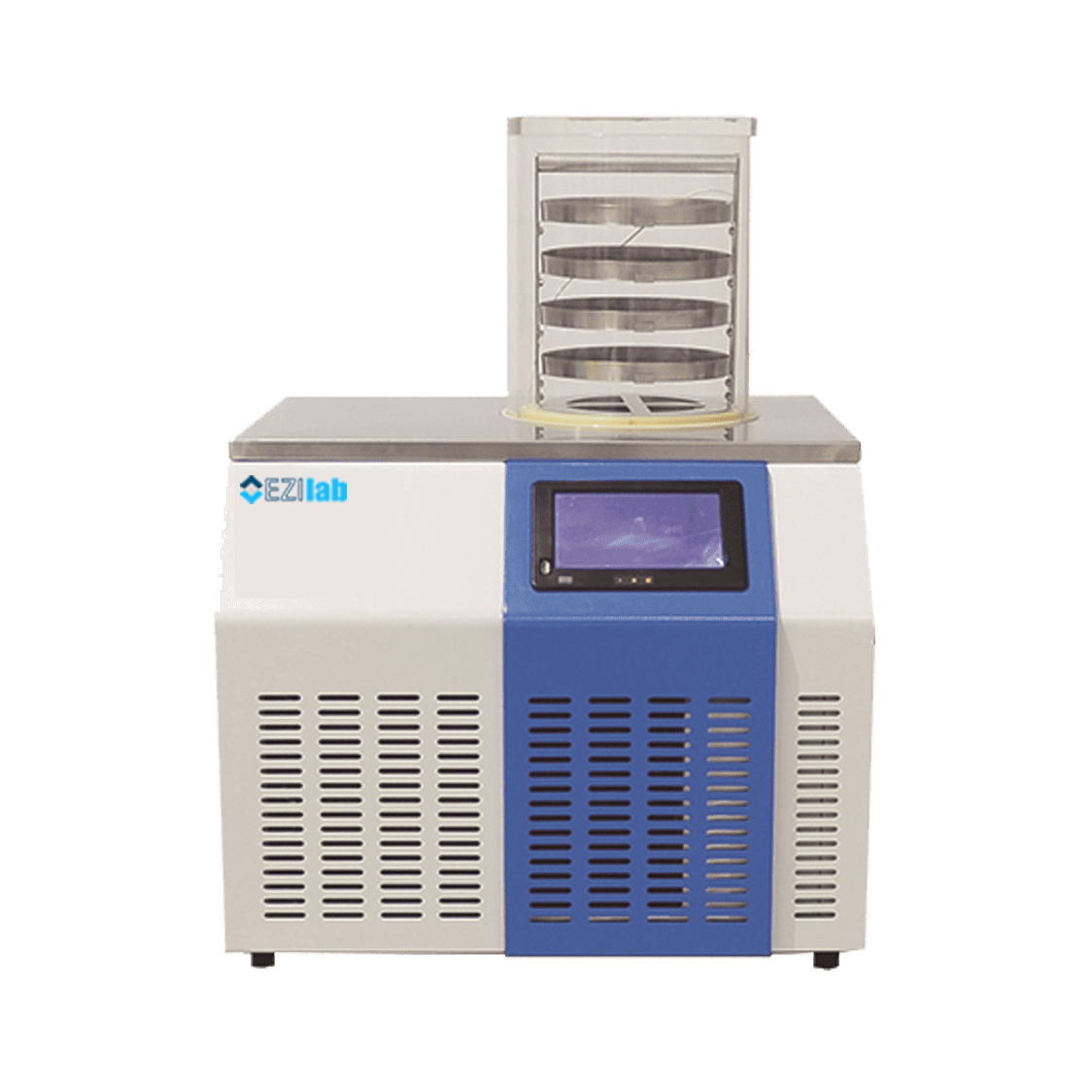

Standard Freeze Dryer EZL-FDF101
Standard Freeze Dryer EZL-FDF101 is an ideal compact research machine that encompasses a range of lab processing requirements. The unique benchtop freeze dryer is specifically designed to handle the lyophilization needs of a laboratory and has a freeze drying area of 0.12 m2, chamber size of ɸ260 × 310 mm and a total loading capacity of 0.3L. The refrigerant R600a + R290 + R23 used are fluorine free refrigerants using air cooling system for freeze drying process. They offer the ability to stabilize and preserve numerous biologicals in laboratory research.
Features :
- Integrated structure design, small volume with no leakage and external flange easy to use
- LCD touch screen
- Large capacity ice condenser trap and without coil inside
- Cascade refrigeration technology
- Pre-freezing guide can be used as guide barrel to speed up the drying rate
- A stainless-steel inflatable (drain) valve that is anti-corrosive and leak less
- Operation surface is made of corrosion-resistant stainless steel
- The patented gas diversion technology features a uniform cold trap and a high ice catching capability
- Compressor has a high efficiency, long service life, and low noise
- Vacuum pump has a faster pumping speed and a greater vacuum limit
- Intelligent data recording system can query historical curves and records and perform U disc export data recording
Specifications :
| Type | Standard Chamber | ||||||
|---|---|---|---|---|---|---|---|
| Freeze Drying Area | 0.12 m2 | ||||||
| water Capture Capacity | 3 kg/24 hr | ||||||
| Tray | 4 pcs | ||||||
| Height Between Trays | 50 mm | ||||||
| Cold Trap Temperature | ≤ -60°C | ||||||
| Cold Trap Capacity | 9.5 L | ||||||
| Cold Trap Size (D×H) | 215×260 mm | ||||||
| Tray Size (D×H) | 200×20 mm | ||||||
| Vacuum Degree | <10 Pa | ||||||
| Freeze Drying Time | 24 h | ||||||
| Loading Capacity/Shelf (Liquid) | 0.3 L | ||||||
| Total Loading Capacity (Liquid) | 1.2 L | ||||||
| Drying Chamber Size (D×H) | 260×310 mm | ||||||
| Total Quantity |
|
||||||
| Refrigerant | R600a+R290+R23 | ||||||
| Cooling System | Air cooling | ||||||
| Power Consumption | 1.3 KW | ||||||
| Power Supply | AC 220V/110V ± 10%, 50/60Hz | ||||||
| External Dimension (W×D×H) | 640×610×550/810 mm | ||||||
| Package Dimension (W×D×H) |
|
||||||
| Gross Weight | 50 kg |
Applications :
Medicine, chemical & food processing
Pharmaceutical
Biotechnology
Food preservation and chemical synthesis
