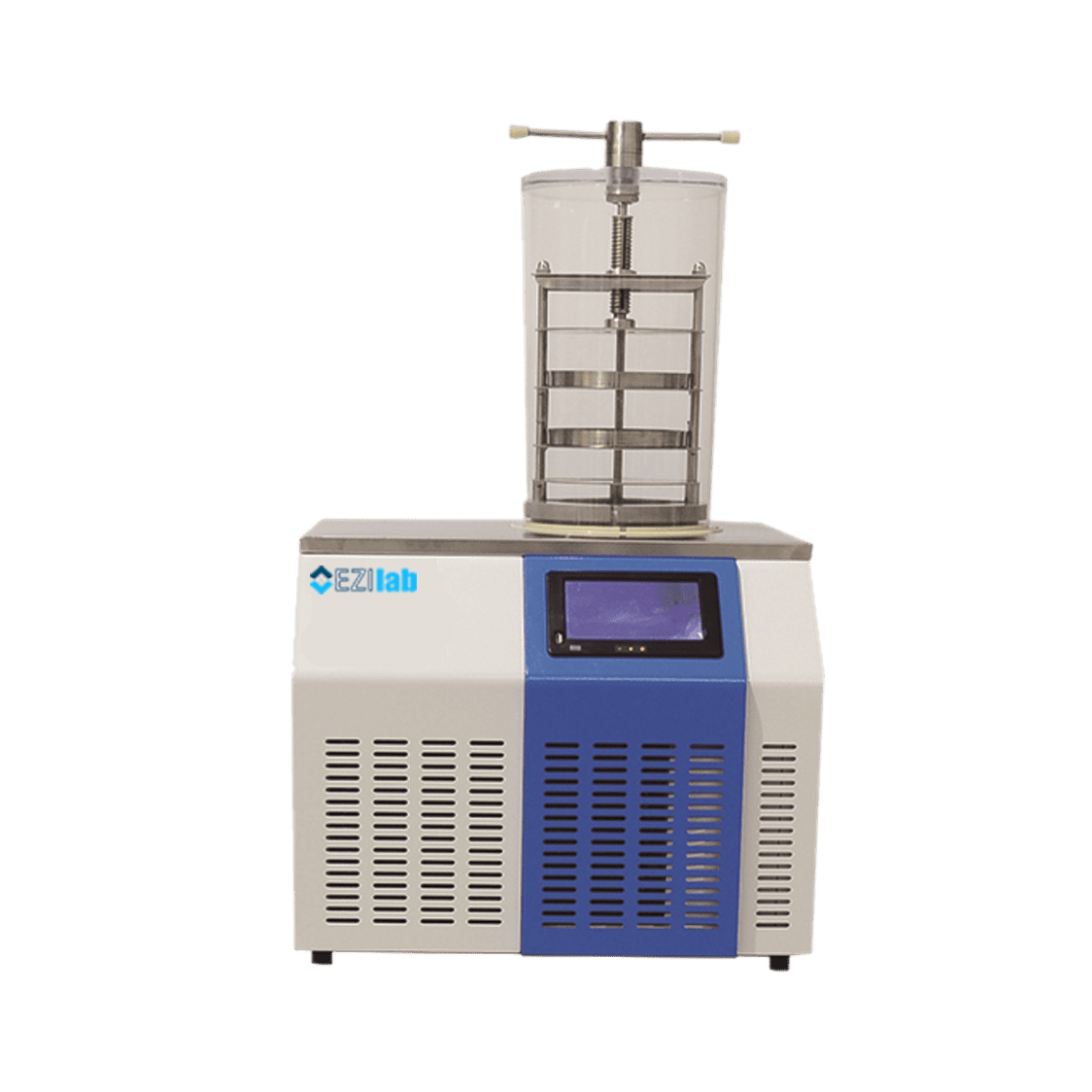

Top Press Freeze Dryer EZL-FDF201
Top Press Freeze dryer EZL-FDF201 machine offers the ability to stabilize and preserve numerous biologicals in laboratory research and development. The unit provides a real time display of collector temperature, vacuum level and point detection system. The unit has a freeze drying area of 0.09 m2 with a total loading capacity of 0.9L. For the freeze drying process, the refrigerants R600a + R290 + R23 were employed, which are fluorine-free refrigerants. In laboratory study, they have the ability to maintain and preserve a wide range of biologicals.
Features :
- LCD touch screen
- Historical data inquiry function
- Pre-freezing shelf can be used as guide barrel to speed up the drying rate
- Ice condenser trap and operation panel are made by stainless steel material
- Cascade refrigeration technology
- Compressor has a high efficiency, long service life, and low noise
- Vacuum pump has a faster pumping speed and a greater vacuum limit
- Intelligent data recording system can query historical curves and records and perform U disc export data recording
Specifications :
| Type | Top press chamber | ||||||
|---|---|---|---|---|---|---|---|
| Freeze Drying Area | 0.09 m2 | ||||||
| water Capture Capacity | 3 kg/24 hr | ||||||
| Tray | 3 pcs | ||||||
| Height Between Trays | 68 mm | ||||||
| Cold Trap Temperature | ≤ -60°C | ||||||
| Cold Trap Capacity | 9.5 L | ||||||
| Cold Trap Size (D×H) | 215×260 mm | ||||||
| Tray Size (D×H) | 180×20 mm | ||||||
| Vacuum Degree | <10 Pa | ||||||
| Freeze Drying Time | 24 h | ||||||
| Loading Capacity/Shelf (Liquid) | 0.3 L | ||||||
| Total Loading Capacity (Liquid) | 1.2 L | ||||||
| Drying Chamber Size (D×H) | 261×310 mm | ||||||
| Total Quantity |
|
||||||
| Refrigerant | R600a+R290+R23 | ||||||
| Cooling System | Air cooling | ||||||
| Power Consumption | 1.3 KW | ||||||
| Power Supply | AC 220V/110V ± 10%, 50/60Hz | ||||||
| External Dimension (W×D×H) | 640×610×550/990 mm | ||||||
| Package Dimension (W×D×H) |
|
||||||
| Gross Weight | 60 kg |
Applications :
Medicine, chemical & food processing
Pharmaceutical
Biotechnology
Food preservation and chemical synthesis
