Manifold Freeze Dryer EZL-FDF301
Manifold Freeze Dryer EZL-FDF301
www.labotronics.co.in info@labotronics.co.in

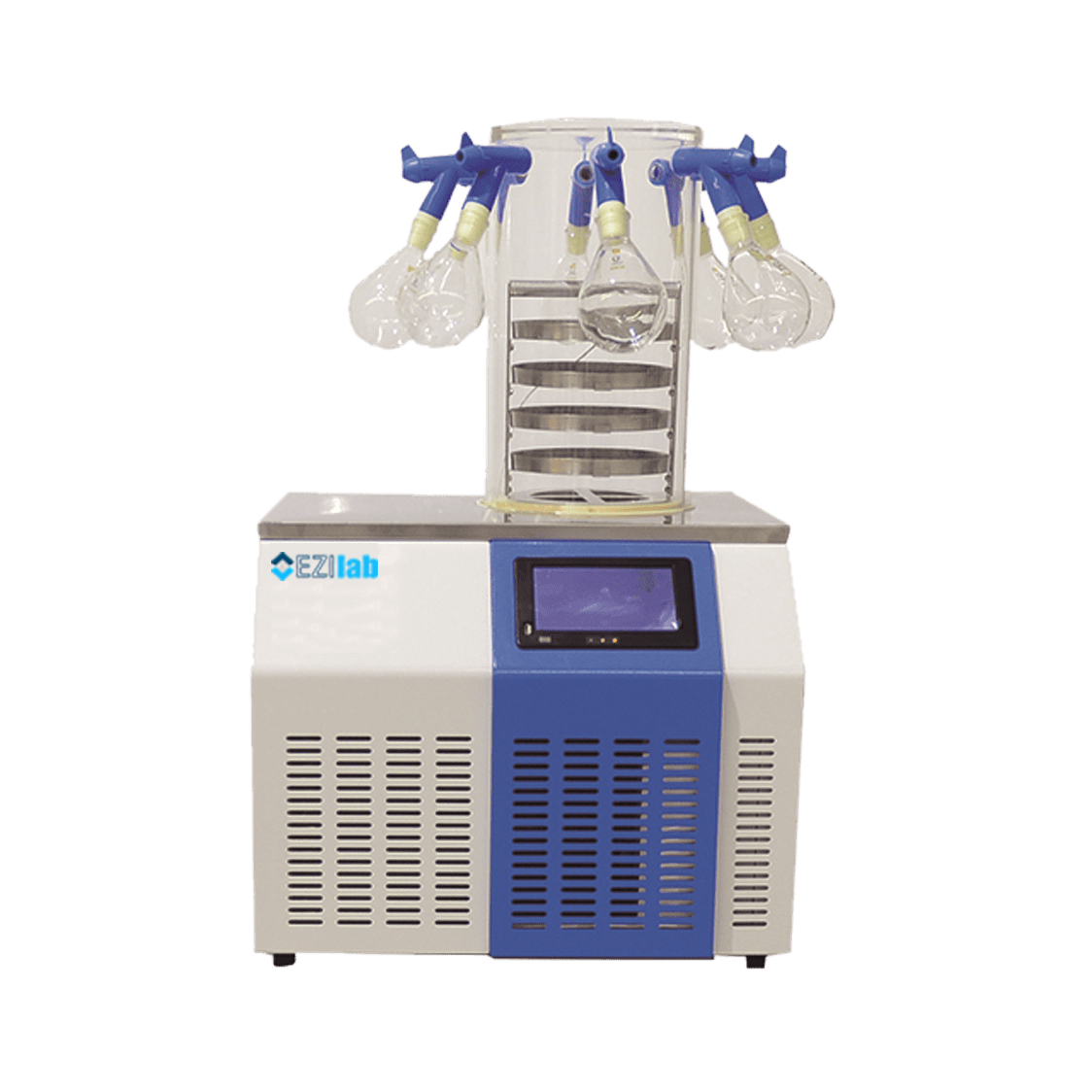

Manifold Freeze Dryer EZL-FDF301
Manifold Freeze Dryer EZL-FDF301 is used as a cold trap for single or multiple units designed to handle the lyophilization needs of research and pilot plant laboratories. The unit has a freeze-drying chamber size of ɸ260 × 450mm, 0.3L loading capacity / shelf, total loading capacity of 1.2L. The refrigerant R600a + R290 + R23 used are fluorine free refrigerants using air cooling system for freeze drying process. They offer the ability to stabilize and preserve numerous biologicals in laboratory research.
Features :
- Integrated structure design, small volume with no leakage and external flange easy to use
- A stainless-steel inflatable (drain) valve that is anti-corrosive and leak less
- Operation surface is made of corrosion-resistant stainless steel
- The patented gas diversion technology features a uniform cold trap and a high ice catching capability
- The international well-known brand compressor has a high efficiency, long service life, and low noise
- The branded vacuum pump has a faster pumping speed and a greater vacuum limit
- The intelligent data recording system can query historical curves and records and perform U disc export data recording
Specifications :
| Type | Standard port chamber with 8 port manifold | ||||||
|---|---|---|---|---|---|---|---|
| Freeze Drying Area | 0.12 m2 | ||||||
| water Capture Capacity | 3 kg/24 hr | ||||||
| Tray | 4 pcs | ||||||
| Height Between Trays | 50 mm | ||||||
| Cold Trap Temperature | ≤ -60°C | ||||||
| Cold Trap Capacity | 9.5 L | ||||||
| Cold Trap Size (D×H) | 215×260 mm | ||||||
| Tray Size (D×H) | 200×20 mm | ||||||
| Vacuum Degree | <10 Pa | ||||||
| Freeze Drying Time | 24 h | ||||||
| Loading Capacity/Shelf (Liquid) | 0.3 L | ||||||
| Total Loading Capacity (Liquid) | 1.2 L | ||||||
| Drying Chamber Size (D×H) | 262×310 mm | ||||||
| Total Quantity |
|
||||||
| Refrigerant | R600a+R290+R23 | ||||||
| Cooling System | Air cooling | ||||||
| Power Consumption | 1.3 KW | ||||||
| Power Supply | AC 220V/110V ± 10%, 50/60Hz | ||||||
| External Dimension (W×D×H) | 640×610×550/950 mm | ||||||
| Package Dimension (W×D×H) |
|
||||||
| Gross Weight | 55 kg |
Applications :
Medicine, chemical & food processing
Pharmaceutical
Biotechnology
Food preservation and chemical synthesis
