Salt Spray Test Chamber LZ-SSC-A103
Salt Spray Test Chamber LZ-SSC-A103
www.labotronics.co.in info@labotronics.co.in

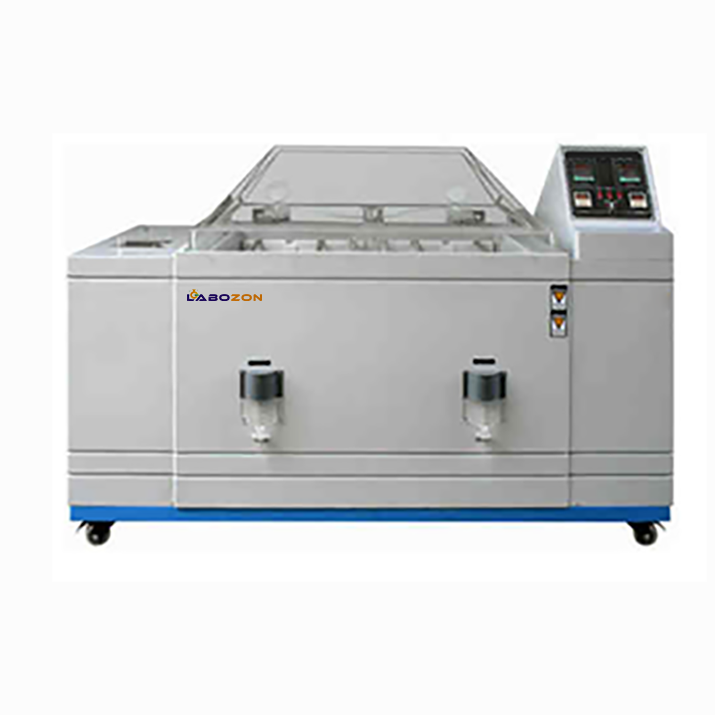

Salt Spray Test Chamber LZ-SSC-A103
Salt Spray Test Chamber LZ-SSC-A103 is temperature controller LED digital display PID + SSR microprocessor integrated controller device. It offers continuous / periodic spray type and 35℃ to 55℃ temperature range. The power consumption is up to 4.5 kW. It adopts spray system tower type spray device with non-crystallization nozzle, salt mist spray finer and more uniformly. The outer body is made of imported PVC plate with function and performance of corrosion-resisting, high-strength and anti-aging. The cycling salt mist test chamber can effect temperature & humidity test, salt mist test, and drying test individually.
Features :
- Designed with temperature controller LED digital display PID + SSR microprocessor integrated controller
- Offers heating system nichrome electric heater, full independent system
- Adopts spray system tower type spray device with non-crystallization nozzle, salt mist spray finer and more uniformly
- The outer body is made of imported PVC plate with function and performance of corrosion-resisting, high-strength and anti-aging
- Designed with temperature and humidity sensor PT100
- Adjustable spray time up to 1 to 99 (S, M, H), period
- Saline solution collecting, standard funnel and standard metering cylinder
- Saline solution preheating, saline solution temperature equal to temperature inside chamber
- Equipped with breaker, every heater attach electronic and mechanical over-heat protection device
- Water seal structure is adopted between the cover and chamber body, no mist leak
- The whole mould is soldered with high-temperature, corrosion-resisting, easy to clear
- Designed with lock and door type of side cover, elegant appearance and convenient to maintain
- Offers standard and equivalent IEC, MTL, DIN, ASTM
Specifications :
| Spray type | Continuous / Periodic |
|---|---|
| Temperature range | 35℃ to 55℃ |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 95 to 98% RH |
| Air saturator | RT＋5℃ to 55℃ |
| Spray deposition | 1 to 2 ml/cm2h |
| Dimension | 850 × 1300 × 600 mm |
| External dimension | 125 × 200 × 155 mm |
| Power consumption | 4.5 kW |
| Power supply | AC 220 V 50 Hz |
| Gross weight | 500 kg |
Applications :
Salt Spray Test Chamber is used for salt mist corrosion test to various accessories and parts, electronic components, coating of metal material and industrial products across the cycling salt mist test chamber can effect temperature & humidity test, salt mist test, and drying test individually.
