UV Test Chamber LZ-UTC-A102
UV Test Chamber LZ-UTC-A102

UV Test Chamber LZ-UTC-A102

www.labotronics.co.in info@labotronics.co.in

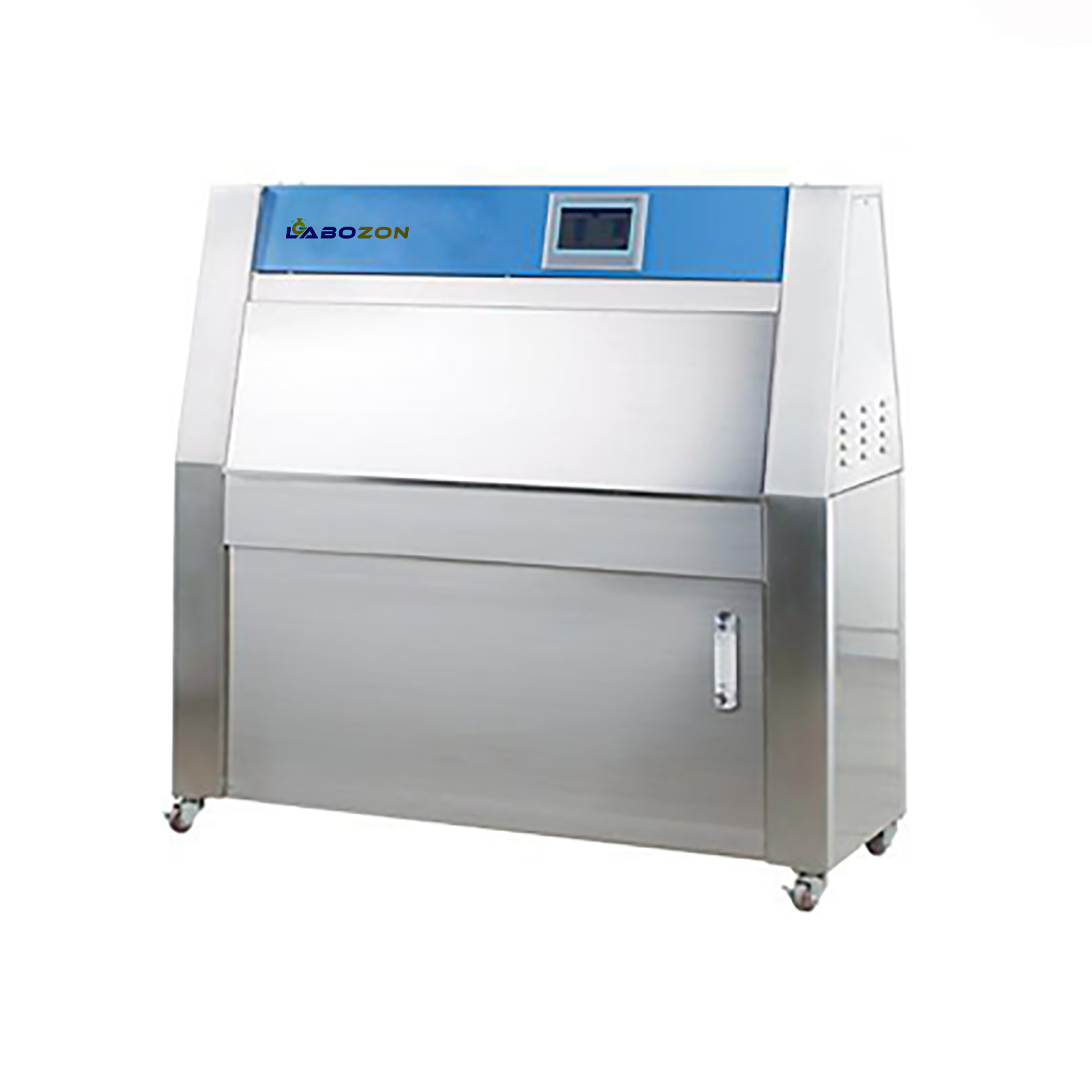

UV Test Chamber LZ-UTC-A102

UV Test Chamber LZ-UTC-A102 is temperature and humidity controller. The Temperature Range for light cycle is 45℃ to 80℃ and offers temperature range for condensation cycle 40℃ to 60℃. Adopts 18 pcs standard sample test shelf (75 × 150 mm). Designed with 4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation. It provide 12 spray headers which can meet the uniformity of rainfall for flat sample rack. Material used advanced stainless steel material and overall appearance is generous. Equipped with 4 pieces of 20 W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours. Build-in 4 pieces of 70 x 150 flat sample racks, the users can test for three-dimensional or flat samples.

Features :
  •  Designed with 4.3 inch touch screen, menu type interface could set parameters fast, which is easy to understand and operation
  •  Equipped with 4 pieces of 20 W ultraviolet lamp, more stable and the life of the lamp is up to 5000 hours
  •  Offers BPT sensor, cabinet temperature and rain cycle etc
  •  It can be used for visually setting and displaying
  •  Radiation intensity adjustment with optional RM-20 irradiance meter which by manual adjustment
  •  Adopts blackboard temperature self-control by test set value, to meet user for lighting, condensation, spray, temperature and other aging test chamber
  •  Build-in 4 pieces of 70 × 150 flat sample racks, the users can test for three dimensional or flat samples
Specifications :
Temperature Range for Light cycle 45℃ to 80℃
Temperature Range for Condensation cycle 40℃ to 60℃
Light source type UVA or UVB fluorescent ultraviolet lamp
Power 40 W/pc, total 8 pcs
Wavelength range Standard with UVA@340 nm Optional@351 nm or UVB@313 nm
Irradiance Irradiance automatic control
Calibration function Yes
Spraying function 12-hole sample spraying device
Sample shelf size 18 pcs standard sample test shelf (75 × 150 mm）
Center distance between sample and lamp 50 mm to ±3 mm
Cycle mode Dark, light, spray, condensate set multi-cycle automatic control
Light control Irradiance automatic monitoring and control
Dimension 1200 × 450 × 1500 mm
Power consumption 2000 W
Power supply 220 V, 50 Hz
Net weight 175 kg
Gross weight 224 kg
Applications :

UV Test Chamber is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, leather textile test, treatment of mandatory ventilation, etc.
